MUTCD-compliant signage for bike lanes, shared roadways, and designated cycling routes
Cyclists share the road with vehicle traffic on millions of miles of American streets, and clear signage is what keeps that arrangement safe for everyone. Bicycle lane traffic signs mark where bike lanes begin and end, warn drivers of upcoming crossings, and guide riders along established bike routes. Trafficsigns.com stocks the full range of regulatory, warning, and guide signs cyclists and municipalities rely on, all built to MUTCD specifications on reflective aluminum. Whether you're outfitting a new bike lane, marking a shared roadway, or adding wayfinding to a regional bike route, this guide covers the sign types, placement rules, and material options you need to plan the job correctly.
Bicycle Lane Sign Questions Answered
- What are the most common bicycle lane and bike route sign types, and what do they mean?
- Bicycle signage falls into three MUTCD categories. Regulatory signs are white rectangles that tell road users what they must do, such as the Bike Lane Sign (R3-17), which marks a lane reserved for bicycle travel. Warning signs are yellow (or fluorescent yellow-green) diamonds that alert drivers to a hazard ahead, like the Bicycle and Pedestrian Crossing Sign (W11-15) or a standard Bicycle Crossing Sign (W11-1). Guide signs are typically green and provide direction or distance information, such as the Bike Route Guide Sign (D11-1).
- What does a bicycle sign with an arrow mean?

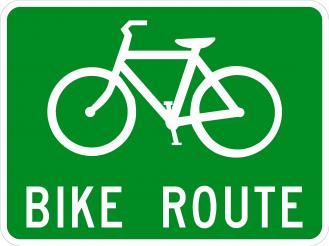

- An arrow paired with a bicycle route marker indicates a change in direction along a designated route. The Bike Route Guide Sign (D11-1) is the standard example: it confirms the route number, direction, and sometimes destination distance, and is often paired with a directional arrow plaque so cyclists know where the route turns. These signs are placed at decision points such as intersections, trail junctions, or where a route transitions from a dedicated path to a shared roadway.
- What is the difference between a Bike Lane Ahead sign and a Bike Lane Ends sign?
- The Bike Lane Ahead (plaque) Sign (R3-17a) is mounted below advance warning signage to tell drivers a marked bike lane is coming up, giving them time to merge or adjust position. The Bike Lane Ends (plaque) Sign (R3-17b) does the opposite: it's placed where the dedicated lane terminates so both drivers and cyclists know the roadway is becoming shared. Both are plaque-style signs meant to supplement, not replace, the primary R3-17 bike lane sign.
- What sizes and materials are available for bicycle lane traffic signs?
- Standard bicycle lane signage runs in familiar MUTCD sizes: the R3-17 bike lane sign is available at 24" x 18" and 30" x 24", plaque signs like the R3-17a and R3-17b measure 30" x 12", and warning signs such as the W11-15 crossing sign come in 24", 30", and 36" diamond formats. Every sign is produced on aluminum in your choice of engineer grade (reflective), high intensity (very reflective), or diamond grade (ultra reflective) sheeting, so you can match reflectivity to speed limits, lighting conditions, and local DOT requirements.
- Are bicycle signals the same thing as bike lane or bike route signs?
- No. Bicycle signals are electronic traffic signal heads with bike-specific indications used at signalized intersections to give cyclists a dedicated phase. Bike lane signs and bike route signs are static, non-illuminated aluminum signs that mark lane boundaries, warn of crossings, or provide wayfinding. Many bicycle infrastructure projects use both: a bicycle signal to control right-of-way at the intersection and static signage like the R3-17 or D11-1 to mark the lane and route leading up to it.
- How much do bicycle lane signs cost, and do you offer bulk pricing?
- Pricing depends on sign size and reflective grade. Plaque signs like the R3-17a and R3-17b start around $23.95 in engineer grade, while a full-size R3-17 bike lane sign starts around $33.25 at 24" x 18". Diamond-grade warning signs such as the W11-15 run higher due to added reflectivity. Every product ships with volume tiers, so ordering four, seven, sixteen, or fifty-plus signs automatically lowers your per-unit cost, which matters for municipalities and property managers outfitting an entire bike network at once.
- Can I order custom bicycle signs for a private community, campus, or business property?
- Yes. For private roadways, business parks, and campus paths that fall outside public right-of-way, custom reflective aluminum blanks like the Custom Orange Reflective Aluminum Diamond or Custom Orange Reflective Aluminum Square let you print your own bicycle caution or wayfinding messaging while keeping the same reflective aluminum construction used on MUTCD signage. A pre-production proof is provided for approval before any custom order goes to print.
MUTCD Categories for Bicycle and Bike Route Signage

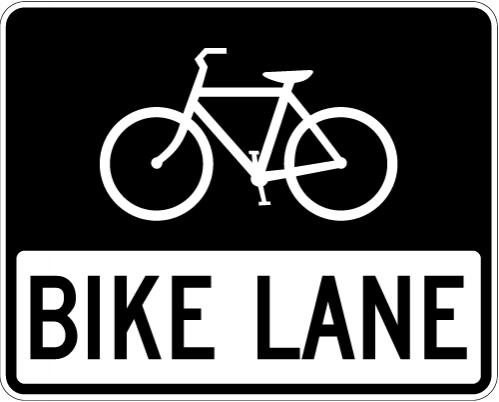

Every bicycle sign on a public roadway falls under one of three MUTCD sign families, and understanding the difference helps you order the right product for the job. Regulatory signs use white backgrounds with black or red lettering and establish rules, such as the Bike Lane Sign (R3-17), which designates a portion of the roadway for bicycle use only. Regulatory plaques, including the Bike Lane Ahead Sign (R3-17a) and Bike Lane Ends Sign (R3-17b), mount beneath the primary sign to communicate transitions along the corridor. Warning signs use the familiar yellow diamond shape (or fluorescent yellow-green for pedestrian and bicycle crossings) to flag upcoming hazards, such as the Bicycle and Pedestrian Crossing Sign (W11-15) or the standard Bicycle Crossing Sign (W11-1), both of which alert drivers to slow down where a marked crossing intersects the roadway. Guide signs, typically green with white lettering, handle wayfinding along established bike routes; the Bike Route Guide Sign (D11-1) confirms route direction, distance, and destination at decision points such as intersections and trail junctions. Shared roadway signage, including right-turn-lane yield-to-bike markings, rounds out the category by reminding drivers that cyclists have a legal right to the lane even where no dedicated bike lane exists.
Standard Signs, Custom Signage, and Event or Route Banners
Most public bike lane and bike route projects call for standard MUTCD sign faces in the sizes and reflective grades outlined above, but not every application fits that mold. Private developments, apartment complexes, and campus bike paths often need custom messaging that still reads as official and durable. Custom reflective aluminum blanks such as the Custom Reflective Aluminum Diamond Signs and Custom Reflective Aluminum Square Signs let facility managers print site-specific bicycle caution, yield, or wayfinding text while keeping the same reflective sheeting, radius corners, and pre-punched mounting holes as public roadway signs. For agencies covering a large network, blank stock in sizes like 12" x 12" square aluminum traffic sign blanks offers a cost-effective base for smaller directional or regulatory markers.
Reflective Grade Comparison for Bicycle Lane Signs
Every bicycle traffic sign on Trafficsigns.com is available in three reflective sheeting grades. Choosing the right grade depends on posted speed, ambient lighting, and how critical nighttime visibility is for the location.
| Reflective Grade | Reflectivity Level | Typical Use Case | Relative Cost |
|---|---|---|---|
| Engineer Grade | Reflective | Low-speed residential streets, campus paths, secondary bike routes | Lowest |
| High Intensity | Very Reflective | Arterial roads, moderate-speed corridors, higher-traffic bike lanes | Mid-range |
| Diamond Grade | Ultra Reflective | High-speed roadways, intersections, low-light or rural crossings | Highest |
Shop Bicycle Lane and Bike Route Signs
Every sign below is built on reflective aluminum to MUTCD specifications and ships in the size and reflective grade your project requires.
Regulatory Bicycle Signs

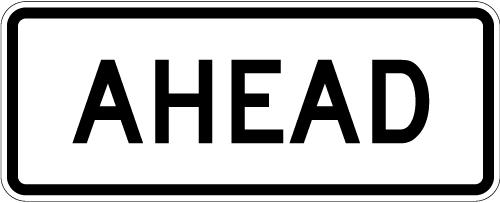

Bike Lane Ahead (plaque) Sign - R3-17a
$23.95 - $37.95
Shop on Trafficsigns.com
Regulatory Bicycle Signs

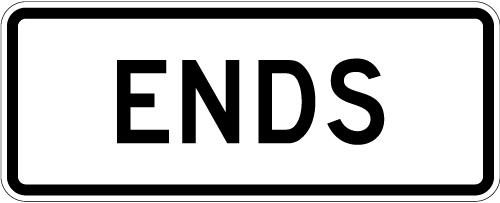

Bike Lane Ends (plaque) Sign - R3-17b
$23.95 - $37.95
Shop on Trafficsigns.com
Warning Signs

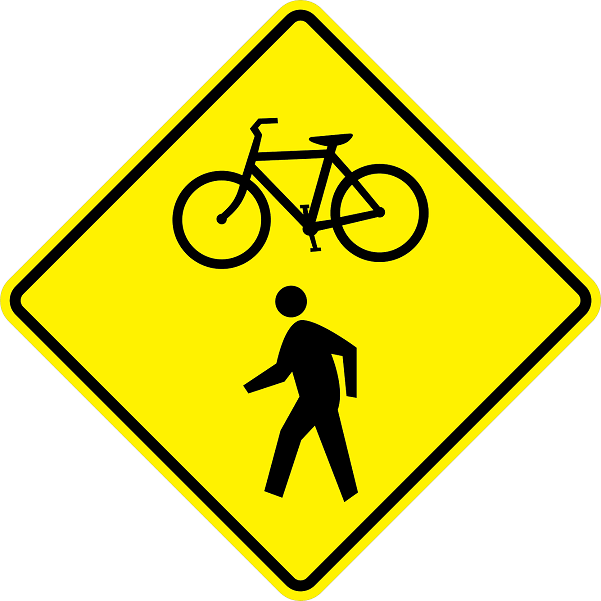

Bicycle and Pedestrian Crossing Sign - W11-15
$44.25 - $195.50
Shop on Trafficsigns.comOrder MUTCD-Compliant Bicycle Signs Today
Equip your bike lanes, crossings, and cycling routes with reflective aluminum signage built to state and federal standards. Browse the full regulatory bicycle sign lineup and get bulk pricing on orders of four signs or more.
