Compare the two most popular traffic sign post types to find the right fit for your installation.
Choosing the right sign post affects how long your signs last, how easy they are to install, and whether they meet local safety standards. U-channel and square tube sign posts each have distinct advantages depending on the application, site conditions, and sign size. This guide breaks down the key differences so you can make a confident purchasing decision.
Common Questions About U-Channel and Square Sign Posts
- What are U-channel posts used for?
- U-channel sign posts are used to mount traffic, parking, and regulatory signs in both public and private settings. Their ribbed, channel-shaped profile allows signs to be bolted directly to the post face without additional hardware. They are commonly installed along roadways, in parking lots, and on private property where fast, straightforward installation is a priority.
- What is the difference between U-channel and square tube sign posts?
- U-channel posts have an open, ribbed profile that makes sign attachment simple using bolts through the pre-punched holes. Square tube posts are closed, hollow, and have a cleaner appearance, making them a popular choice for commercial parking lots and facilities where aesthetics matter. Square posts typically require brackets or clamps to mount signs, while U-channel posts allow direct bolt-through attachment.
- When should you use a U-channel post over a square post?
- U-channel posts are the better choice when you need fast installation, a lower per-post cost, or a breakaway-compliant system for roadside signage. They are also easier to drive into the ground with a post driver rather than requiring a dug hole. If you are installing temporary or semi-permanent signs along a roadway or field, U-channel posts are the practical, MUTCD-compatible option.
- What is the difference between a T-post and a U-channel post?
- T-posts are primarily used in agricultural fencing and are not designed for sign mounting. U-channel posts are specifically engineered for traffic and parking sign installation, with pre-drilled holes spaced on center for direct sign attachment and galvanized coatings that meet highway-use standards. U-channel posts are the correct post type for any application where MUTCD compliance matters.
- What sizes do U-channel and square sign posts come in?
- Galvanized U-channel posts are commonly available in 3 ft, 6 ft, 7 ft, 8 ft, and 10 ft lengths in 2 lb and 3 lb per foot weights. Square posts for sign mounting are typically available in 1 3/4 inch and 2 inch face widths with corresponding anchors. The right length depends on your required mounting height plus the depth you need to drive or embed the post into the ground.
- Do U-channel or square posts require breakaway hardware?
- Breakaway compliance is required for roadside sign installations under MUTCD guidelines. U-channel posts can be fitted with dedicated breakaway hardware. Square posts can use square post anchors, which embed into the soil and allow the post to break away on impact rather than becoming a rigid hazard. Both post types have compliant breakaway solutions available.
- Which post type is better for parking lot signs on private property?
- Square tube posts are widely preferred for parking lot and private property sign installations because of their clean, professional appearance and sturdy feel. They pair well with post clamps and brackets that allow multiple signs to be mounted at different heights on the same post. For private property applications where aesthetics and durability are priorities, square posts with post anchors are typically the better choice.
Understanding U-Channel Sign Posts
U-channel posts are available in two common weights: 2 lb per foot and 3 lb per foot. Heavier posts provide greater rigidity and are better suited for larger signs or locations with high wind exposure. A 2 lb galvanized U-channel post is appropriate for most standard sign sizes up to 30 inches, while the 3 lb post is the better pick for large regulatory or warning signs.
Installation is one of U-channel's biggest advantages. These posts can be driven directly into the ground using a manual or mechanical post driver, with no digging or concrete required in most soil conditions. This makes U-channel sign post installation significantly faster than alternatives that require auguring or setting concrete. For roadside and temporary installations, this speed is a major practical benefit.
For roadway applications, U-channel posts must meet MUTCD sign post requirements for breakaway performance. Breakaway hardware for U-channel posts creates a compliant system that allows the post to yield on vehicle impact rather than acting as a rigid obstacle.
Understanding Square Tube Sign Posts
Square posts are commonly used in commercial parking lots, campuses, residential communities, and private property installations where appearance is as important as function. The closed, rectangular profile looks more refined than a U-channel post and is better suited to environments where the sign structure itself is visible to the public up close.
Square post anchors allow square posts to function as a breakaway system. The anchor is driven or embedded into the soil with only 1 to 2 inches exposed above ground. The square post slides into the anchor and is secured with bolts. On impact, the post releases from the anchor rather than remaining rigidly fixed, reducing injury risk. This system also makes sign removal and replacement significantly easier since the anchor stays in the ground.
For facilities that need to mount multiple signs on a single post, square tube posts pair well with multi-sign clamp systems. This is a common setup in parking lot traffic sign installations where a single post might carry both a directional and a no-parking sign. You can browse the full range of posts and hardware to find compatible mounting components for square post systems.
U-Channel vs. Square Sign Posts: Side-by-Side Comparison
Use this comparison to identify which post type aligns with your installation requirements, budget, and site conditions.
| Feature | U-Channel Sign Posts | Square Tube Sign Posts |
|---|---|---|
| Profile Shape | Open ribbed channel (U-shaped cross section) | Closed hollow square tube |
| Material | Galvanized steel (2 lb or 3 lb per foot) | Galvanized or powder-coated steel |
| Sign Attachment | Direct bolt-through pre-punched holes | Requires clamps, brackets, or band straps |
| Installation Method | Drive directly into soil with post driver | Typically requires post anchor or concrete footing |
| Breakaway Compliance | Compatible with U-channel breakaway hardware | Compatible with square post anchors |
| Typical Use Cases | Roadside signs, temporary installs, MUTCD-compliant signage | Parking lots, campuses, private property, commercial facilities |
| Aesthetics | Functional, utilitarian appearance | Clean, professional finish |
| Multiple Signs Per Post | Possible but less common | Well-suited with post clamps and multi-sign brackets |
| Relative Cost | Lower per-post cost, no extra bracket required | Slightly higher due to anchor and bracket hardware |
| Height Adjustment | Flexible via bolt-through holes along full length | Adjustable via clamp positioning on post |
Sign Posts and Hardware Available at Trafficsigns.com
Browse our selection of U-channel posts, square post anchors, and mounting hardware built for professional traffic sign installations.
U-Channel Sign Posts
Galvanized Channel Posts 2 LB - HW-P2-Gal
$22.90 - $49.40
Shop on Trafficsigns.com
U-Channel Sign Posts
Galvanized Channel Posts 3 LB - HW-P3-Gal
$39.95 - $49.95
Shop on Trafficsigns.com
Square Post Hardware
Square Post Anchors 12 Gauge - HW-SP-AG
$34.60 - $45.60
Shop on Trafficsigns.com

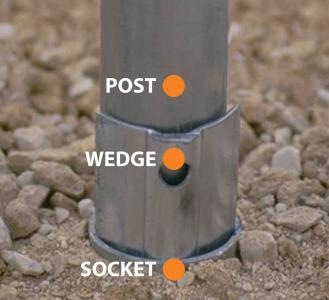

Breakaway Sign Hardware
