What materials are road narrows signs made from?

Road narrows signs at Trafficsigns.com are made from aluminum standard punched blanks. You can choose from Engineer Grade (standard reflective), High Intensity (very reflective), or Diamond Grade (ultra reflective) sheeting. Aluminum construction makes these signs weather-resistant and built to last outdoors for years without fading, warping, or corroding. For temporary construction zones, roll-up versions using mesh and reflective fabric are also available.

What sizes are available for road narrows signs?

The standard Road Narrows Sign (W5-1) is available in 24x24 inch, 30x30 inch, 36x36 inch, and 48x48 inch sizes. The MUTCD recommends a 24x24 inch diamond-shaped sign for conventional roads and larger sizes for high-speed or freeway applications. Roll-up construction versions are available in 36x36 and 48x48 inch formats.

What is the price range for road narrows signs?

Pricing starts at $34.15 for an 18x18 inch Engineer Grade sign and goes up based on size and reflectivity grade. A 24-inch W5-1 in Engineer Grade starts at $44.25, while a Diamond Grade version of the same size starts at $73.35. Volume discounts apply starting at 4 units, with price reductions continuing at the 7, 16, and 50-unit tiers.

Do these signs meet DOT and MUTCD standards?

Yes. All road narrows signs sold at Trafficsigns.com comply with DOT and MUTCD (Manual on Uniform Traffic Control Devices) state and federal standards. High Intensity and Diamond Grade options meet the retroreflectivity requirements for nighttime visibility as specified in the MUTCD.

How long does production and shipping take?

Standard aluminum signs are typically produced and shipped within a few business days. Roll-up construction signs may have slightly different lead times depending on material and quantity. Contact Trafficsigns.com directly for specific turnaround times for your order size and required delivery date.

How do I mount a road narrows sign?

Aluminum road narrows signs use standard punched blanks, which means they come pre-drilled with mounting holes compatible with most standard sign posts and brackets. No special tools are required beyond a basic sign post and hardware. Roll-up construction signs attach to portable sign stands and can be set up or taken down quickly for temporary work zone applications.

Can I order road narrows signs in bulk for a large project?

Yes. Trafficsigns.com offers tiered bulk pricing on all road narrows sign SKUs. Discounts begin at 4 units and increase at the 7, 16, and 50-unit thresholds. For large municipal, state, or contractor orders, buying at the 50-unit tier provides the lowest per-unit cost. Contact the sales team for orders exceeding standard catalog quantities.

Road Narrows Sign: Meaning, Placement & MUTCD Guide

Common Buyer Questions About Road Narrows Signs

What materials are road narrows signs made from?: Road narrows signs at Trafficsigns.com are made from aluminum standard punched blanks. You can choose from Engineer Grade (standard reflective), High Intensity (very reflective), or Diamond Grade (ultra reflective) sheeting. Aluminum construction makes these signs weather-resistant and built to last outdoors for years without fading, warping, or corroding. For temporary construction zones, roll-up versions using mesh and reflective fabric are also available.
What sizes are available for road narrows signs?: The standard Road Narrows Sign (W5-1) is available in 24x24 inch, 30x30 inch, 36x36 inch, and 48x48 inch sizes. The MUTCD recommends a 24x24 inch diamond-shaped sign for conventional roads and larger sizes for high-speed or freeway applications. Roll-up construction versions are available in 36x36 and 48x48 inch formats.
What is the price range for road narrows signs?: Pricing starts at $34.15 for an 18x18 inch Engineer Grade sign and goes up based on size and reflectivity grade. A 24-inch W5-1 in Engineer Grade starts at $44.25, while a Diamond Grade version of the same size starts at $73.35. Volume discounts apply starting at 4 units, with price reductions continuing at the 7, 16, and 50-unit tiers.
Do these signs meet DOT and MUTCD standards?: Yes. All road narrows signs sold at Trafficsigns.com comply with DOT and MUTCD (Manual on Uniform Traffic Control Devices) state and federal standards. High Intensity and Diamond Grade options meet the retroreflectivity requirements for nighttime visibility as specified in the MUTCD.
How long does production and shipping take?: Standard aluminum signs are typically produced and shipped within a few business days. Roll-up construction signs may have slightly different lead times depending on material and quantity. Contact Trafficsigns.com directly for specific turnaround times for your order size and required delivery date.
How do I mount a road narrows sign?: Aluminum road narrows signs use standard punched blanks, which means they come pre-drilled with mounting holes compatible with most standard sign posts and brackets. No special tools are required beyond a basic sign post and hardware. Roll-up construction signs attach to portable sign stands and can be set up or taken down quickly for temporary work zone applications.
Can I order road narrows signs in bulk for a large project?: Yes. Trafficsigns.com offers tiered bulk pricing on all road narrows sign SKUs. Discounts begin at 4 units and increase at the 7, 16, and 50-unit thresholds. For large municipal, state, or contractor orders, buying at the 50-unit tier provides the lowest per-unit cost. Contact the sales team for orders exceeding standard catalog quantities.

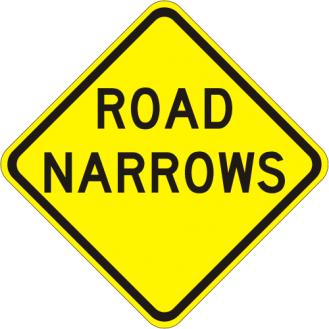

What Is a Road Narrows Sign?

A road narrows sign is a diamond-shaped warning sign used to notify drivers that the roadway ahead becomes narrower. The sign uses a graphic showing two solid lines converging from both sides toward the center, or converging from one side only, depending on how the road narrows. The standard MUTCD designation for the two-sided version is W5-1. A one-sided version, W5-1-O, is used when only one side of the road narrows. The symbol-only version is designated W5-2a.

These signs fall under the MUTCD Series W5 category, which covers road condition warning signs. They are distinct from the Narrow Bridge sign (W5-2), which specifically applies to a bridge being narrower than the approaching roadway, and from lane-ends signs, which address a lane ending and merging rather than the road surface itself narrowing.

The yellow diamond-shaped background and black symbol or text are nationally standardized warning sign elements in the United States, allowing drivers to quickly recognize and understand the warning without relying on text.

Road Narrows Sign MUTCD Requirements

The MUTCD addresses road narrows signs in Part 2C, which covers warning signs for roadway conditions. Key guidance includes:

- The W5-1 sign is used where the usable road surface narrows significantly and the narrowing is not caused by a bridge or other structure. For bridge-related narrowing, the W5-2 Narrow Bridge sign is the correct choice.

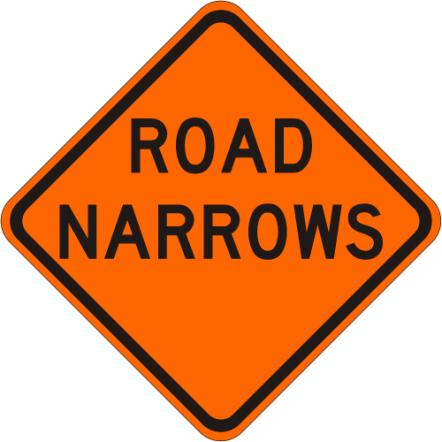

- The W5-1-O variant is used when only one side narrows, such as when a shoulder widens into the travel lane or construction reduces one side of the roadway.
- The W5-2a symbol sign serves as an alternative to the standard W5-1 for agencies preferring a symbolic graphic approach.
- Standard size for conventional roads is 24x24 inches. Higher-speed roadways, expressways, and freeways require larger signs, typically 36x36 or 48x48 inches.
- Reflectivity must meet MUTCD retroreflectivity standards. High Intensity and Diamond Grade materials satisfy nighttime visibility requirements. Engineer Grade sheeting meets the minimum standard for lower-speed applications.
- For construction zones, the MUTCD requires warning signs to be placed in advance of the work area. Temporary roll-up signs using the W5-1 designation are acceptable for short-term deployments.

Agencies should consult the current edition of the MUTCD and any applicable state supplement when specifying exact placement distances and sign sizes for their jurisdiction.

Road Narrows Sign Placement Guidelines

Correct road narrows sign placement is critical for giving drivers adequate reaction time. The MUTCD provides general guidance on advance placement distances based on posted speed:

- 25 mph zones: Advance placement approximately 100 to 200 feet before the narrowing begins.
- 35 to 45 mph zones: Advance placement approximately 250 to 350 feet in advance.
- 55 mph and above: Advance placement 500 feet or more, with supplemental signs used for high-speed roads or limited sight distance conditions.

In construction zones or work zones, the narrow road warning sign is placed in the advance warning area of the temporary traffic control zone, before any tapers or channelization devices begin. A second sign may be posted closer to the work area as a reminder sign.

On rural two-lane highways where the road narrows at a bridge or natural terrain feature, the sign should be visible from a sufficient distance to allow drivers to slow down safely before reaching the constrained section. If sight distance is limited by curves or grades, consider placing the sign at the point where the hazard first becomes visible rather than at a fixed advance distance.

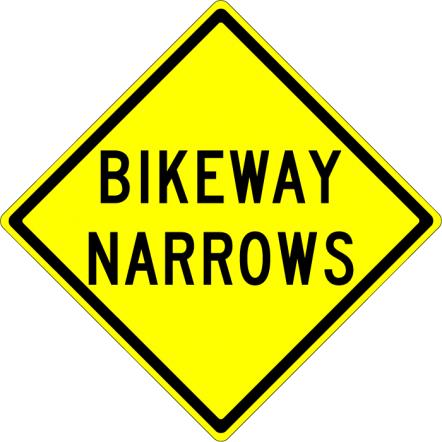

For bikeways, the W5-4A Bikeway Narrows sign provides the same function as the W5-1 but uses imagery specific to cyclists, alerting bike lane users to a reduction in path width ahead.

Road Narrows Sign Meaning: What Drivers Should Understand

The Road Narrows sign meaning is straightforward: the roadway ahead is getting narrower, and drivers should be prepared to adjust their position, reduce speed if necessary, and exercise additional caution. On two-lane roads, drivers may need to allow additional clearance for opposing traffic where the reduced roadway width limits available space.

The sign does not indicate a full lane closure or a lane ending. Those conditions are typically addressed by lane reduction and merge warning signs. The Road Narrows sign specifically warns that the roadway becomes physically narrower, whether due to terrain, construction activity, infrastructure constraints, roadway design, or other conditions.

Drivers should not confuse the road narrows sign with:
- The Right Lane Ends or Left Lane Ends sign, which indicates that a travel lane ends and traffic must merge.
- The Soft Shoulder sign, which warns about reduced support at the pavement edge.
- The Narrow Bridge sign (W5-2), which is specific to bridge structures that are narrower than the approaching roadway.
- The Dead End sign, which tells drivers the road does not connect through to another route.

Each sign addresses a distinct condition, and the MUTCD requires traffic control signs to accurately reflect the condition they are intended to warn about.

Road Narrows Sign Types: Side-by-Side Comparison

Trafficsigns.com offers several road narrows and related warning sign variants. This table compares the key options to help you select the right sign for your specific application.

Sign	MUTCD Code	Use Case	Standard Size	Starting Price
Road Narrows Sign	W5-1	Both sides of road narrow	24x24 in.	$44.25
Road Narrows Sign (One Side)	W5-1-O	One side of road narrows	24x24 in.	$44.25
Road Narrows Symbol Sign	W5-2a	Symbolic alternative to W5-1	24x24 in.	$44.25
Narrow Bridge Sign	W5-2	Bridge structure narrows road	24x24 in.	$44.25

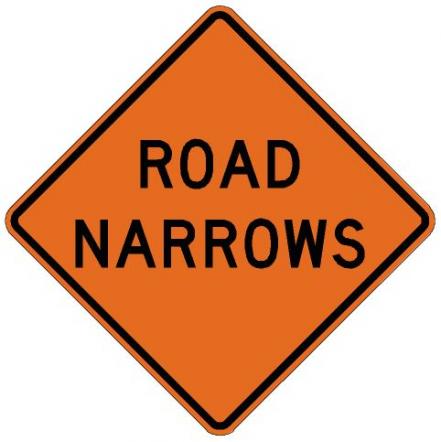

Road Narrows Roll-Up Sign	W5-1-RU	Temporary construction zones	36x36 in.	$44.55
Bikeway Narrows Sign	W5-4A	Narrow bikeway or shared path	18x18 in.	$34.15

Shop Road Narrows Signs

All road narrows signs from Trafficsigns.com are manufactured to MUTCD specifications on aluminum standard punched blanks with your choice of Engineer Grade, High Intensity, or Diamond Grade reflective sheeting. Volume discounts are available on all SKUs.
