How Deep Should a Traffic Sign Post Be Installed?

Common Questions About Traffic Sign Post Installation

How deep should a sign post be in the ground?

For most U-channel and square sign posts, plan on burying 24 to 36 inches of the post below grade, or roughly one-third of the total post length. Areas with a deep frost line need footings that extend below that line to prevent frost heave from loosening the post over winter. Loose, sandy soil or high-wind locations often call for the deeper end of that range, while dense clay or rocky soil can hold a post with slightly less depth as long as the base is compacted well.

How much does a sign post cost?

Pricing varies by material and length. Green U-channel posts start around $15.95 to $16.85 for shorter lengths, with options like the Green Channel Posts 2 LB running from about $16.85 for a 3-foot post up to $41.76 for a 10-foot post before volume discounts. Galvanized versions such as the Galvanized Channel Posts 2 LB cost more due to their corrosion-resistant finish, ranging from $22.90 to $49.40 depending on length. Breakaway-rated posts and socket systems typically run $60 to $75.

How to install a sign post?

For direct-burial posts, dig a hole to the required depth, set the post plumb, and backfill with compacted soil or concrete depending on local specs. For lighter-duty or temporary applications, a socket-based system like the Tubular Posts Breakaway System lets you drive a socket into the ground without digging, concrete, or bolts. Once the post is set, attach your sign panel with the appropriate bracket or fence sign mounting hardware if you're mounting to an existing structure instead of a post.

How much does it cost to install parking signs?

A basic parking sign install typically runs $80 to $200 per sign when you factor in the post, hardware, and labor. A U-channel post with mounting hardware might cost $30 to $70, brackets and bolts add another $8 to $15, and labor for digging and setting the post makes up the rest. Costs go up for breakaway-rated posts required near roadways, or down if you're mounting to an existing fence or wall structure with basic hardware.

Do I need a breakaway post for roadside sign installation?

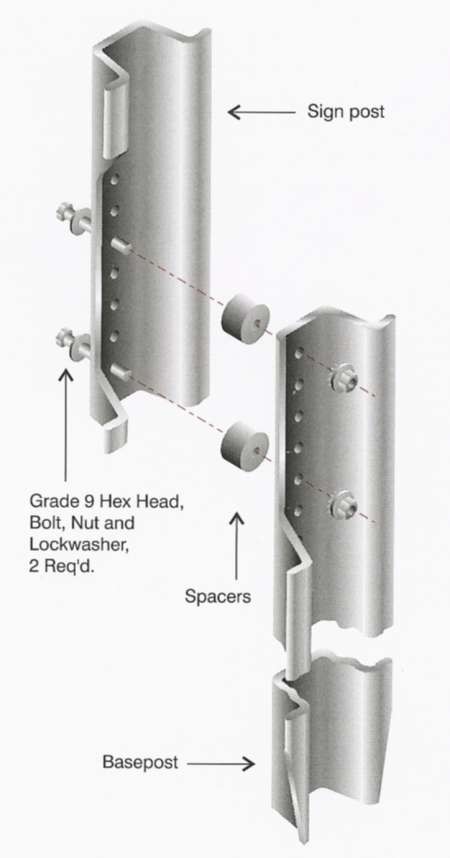

Yes, if the sign sits within the roadway clear zone. Breakaway posts are engineered to give way on vehicle impact instead of causing a collision hazard, and many state DOT specs require them. Options include Break Away U-Channel Posts paired with breakaway hardware for U-channel posts, which uses a two-piece post design that separates cleanly on impact rather than staying rigid.

What's the difference between U-channel and square sign posts?

U-channel posts are the standard for roadside and municipal signage because they're strong, affordable, and compatible with breakaway hardware for safety compliance. Square posts, like the 1 3/4 inch square posts, are more common in decorative or residential settings such as street name signs, often paired with a decorative post cap for a finished look. Square posts generally sit in a concrete footing rather than using breakaway hardware.

Do sign posts need concrete, or is soil compaction enough?

It depends on the application. Permanent municipal or commercial installs, especially with square posts, usually call for a concrete footing for long-term stability. Lighter-duty or temporary installs, like those using a post mounting base or a socket system, can rely on compacted soil since the base or socket distributes load without requiring a full footing. Soil type matters too: sandy or loose soil holds less securely than compacted clay, so concrete is often the safer choice in unstable ground.
